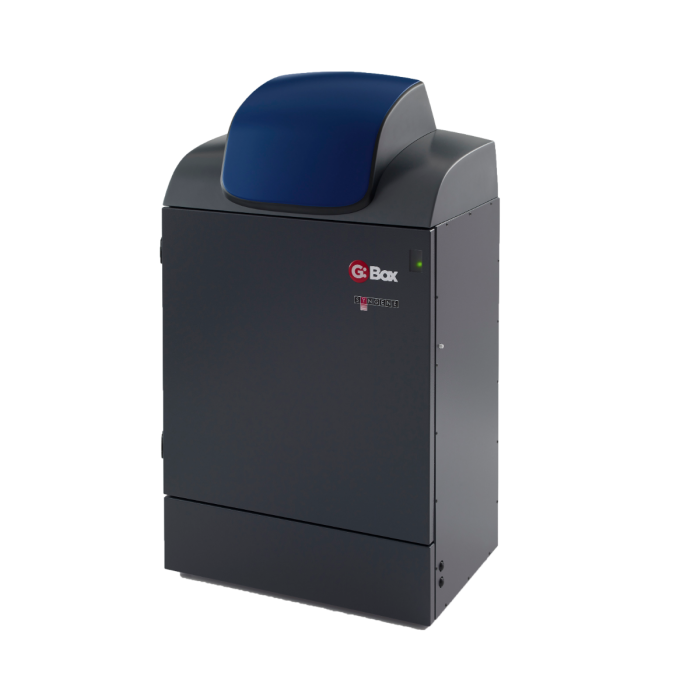

Syngene G:BOX CHEMI Chemiluminescence and Fluorescence Imaging System

In stock

Syngene is founded in 1985 with a single focus to develop gel documentation and fluorescence/chemiluminescence imaging systems.

G:BOX CHEMI is designed to offer sensitive detection of picogram or femtogram amounts of proteins with minimal background. It features a choice of either a 6 mega pixel or 9-mega pixel cooled, high quantum efficiency camera.

With HI-LED lighting options, the full spectrum of high intensity blue, green, red and infra-red is covered. This results in faster exposure times hence better quality images. An edge lighting option can also be added for 2D gel capture including the use of DIGE gels.

The system is controlled by GeneSys application-driven image capture software and it comes complete with unlimited copies of GeneTools analysis software.


Share this product:
  • High quantum efficiency (QE) camera offering unrivalled levels of sensitivity
  • Motor-driven lens and filter wheel for fully automated set up
  • IR and RGB HI-LED lighting options to facilitate multiplex fluorescence and protein quantification
  • Stain-free imaging capability is enabled
  • Edge lighting option for 2D and multiplex in-gel fluorescence DIGE image capture
  • White, UV and blue lighting options for imaging of all types of gel and blot images
  • Extended darkroom with motor driven stage to accommodate large gel/ blot sizes
  • CFR-21 Part 11-compliant GeneSys image capture software offers extensive database of dyes and imaging protocols, offering automatic selection of optimal lighting and filters for perfect imaging
  • Unlimited copies of the GeneTools analysis software provided, allowing every individual to performa data analysis at their own computer
  • 3-year warranty against manufacturing defects
  G:BOX Chemi XX6 G:Box Chemi XX9
Image resolution (pixels m) 6 9.1
Effective resolution (pixels m) 18 27
A/D 16 bit 16 bit
Greyscales 65536 65536
Quantum efficiency @ 425nm 73% 73%
Cooling Peltier Peltier
Lens (motor driven) Motor driven f0.8 or f0.95 with
auto focus and stage zoom
Motor driven f0.8 or f0.95 with
auto focus and stage zoom
Filter wheel (7 position motor driven) Yes Yes
UV filter Yes Yes
Use with external PC Yes Yes
Extended with motor driven stage Yes Yes
Epi LED white lights Yes Yes
Epi UV 302nm Optional Optional
Epi red LED module Optional Optional
Epi blue LED module Optional Optional
Epi green LED module Optional Optional
Epi red LED module M series for multiplexing Optional Optional
Epi green LED module M series for multiplexing Optional Optional
Epi blue LED module M series for multiplexing Optional Optional
Epi IR LED module Optional Optional
IR multiplexing kit (680-800nm) Optional Optional
HI-LED RGB Optional Optional
HI-LED RGBIR Optional Optional
HI-LED RIR Optional Optional
Visible light converter 33 x 31cm Optional Optional
White light pad for visible stains (20 x 14cm) Optional Optional
UltraBright LED blue light transilluminator 20 x 16cm Optional Optional
Edge lighting unit 26.5 x 20cm Optional Optional
UV transilluminators Optional Optional
Max image area (cm) F0.80 lens 34.5 x 27.6 34.5 x 27.6
Min image area (cm) F0.80 lens 15.6 x 12.5 15.6 x 12.5
Max image area (cm) F0.95 lens 32.3 x 25.6 32.3 x 25.6
Min image area (cm) F0.95 lens 15 x 11.8 15 x 11.8
W x H x D (cm) 57 x 99 x 55 57 x 99 x 55
Weight (kg) 45 45
Voltage 115v/240v 115v/240v

Suitable for customers in the lifesciences sector for imaging of:

  • Fluorescence gel
  • Gels stained with visible dyes/ stains
  • Chemiluminescence blots
Choice of wavelength Short – 254nm
Medium – 302nm
Long – 365nm
choice of Imaging area 20 x 20cm
25 x 30cm
Electrical requirement 230V 50Hz or 230V 60Hz


ultrabright-led Transilluminator
wavelength 470nm Blue Light
choice of Imaging area 20 x 16cm


UV-Blue Light Converter Screen
Materal Scratch-resistant plastic
choice of Imaging area 21 x 26cm
25 x 30cm


Visible Light Converter Screen
choice of Imaging area 30.5 x 33cm
23.5 x 30cm


epi UV module
Choice of wavelength 254nm, 365nm or 302nm
no. of module 1 or 2 modules per darkroom


diameter of filter 72mm
choice of wavelength On request


choice of EXcitation wavelength (+/-10nm)

UV – Peak 365nm

Blue – Peak 470nm

Green – Peak 525nm

Red – Peak 623nm

Far Red – Peak 658nm

IR – Peak 740nm
