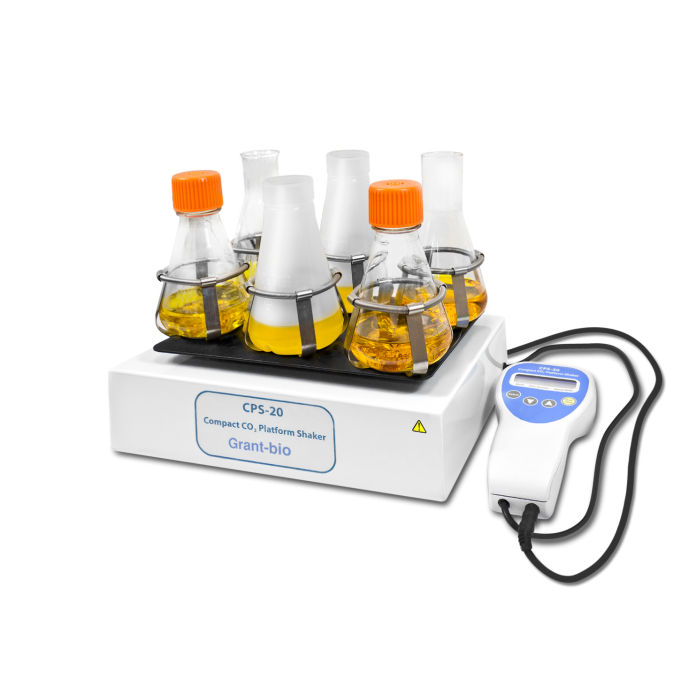

Grant-bio CPS_20
Grant-bio CPS-20 Shaker is an orbital shaker specifically made for use in CO2 incubators. Using an external controller, the electronics of this shaker are protected from harsh environments containing carbon dioxide and humidity in a CO2 incubator. Hence it is the choice shaker for CO2 incubators.
Using a brushless motor with a guaranteed service life up to 35,000 hours, this shaker is equipped with a triple eccentric mechanism for platform motion, providing superior balancing characteristics, superior reliability, and quiet operation. Hence, reproducibility of cell growth is assured.
To cater to varying demands of procedures and cultivation vessels, a choice of 5 interchangeable platforms is available.
| CPS-20 | |
| Speed control range | 50 - 250* RPM (increment 10 rpm) *max. speed depends on the load and vessels' shape |
| Digital time setting | 1 min–96 hrs / non–stop |
| Digital speed control | + |
| Maximum continuous operation time | 168 hr |
| Orbit | 20 mm |
| Maximum load | 3 kg |
| Overall dimensions (W×D×H) | 255x255x100 mm |
| Weight | 3.4 kg |
| Input current/power consumption | 12 V, 470 mA / 5.7 W |
| External power supply | Input AC 100–240 V; 50/60 Hz; Output DC 12 V |
Suitable for customers in the life-science sector for:
- microbial and cell culture cultivation
- protein expression
- solubility studies
Ordering information
| Description | Part no. |
| Orbital shaker for use in CO2 Incubators, 50-250 rpm, 20mm orbit. Platforms sold separately | CPS-20 |
| Platform with spring clamps for 12 x 100-150ml flasks fits CPS-20 | P12-100 |
| Platform universal flat-bed 3 adjustable bars to hold flasks, beakers, bottles 270 x 195 x 40mm fits CPS-20 | PUP-12 |
| Platform with spring clamps for 6 x 250-300ml flasks fits CPS-20 | P6-250 |
| Platform with spring holders for 88 tubes up to 30mm fits CPS-20 | P16-88 |
| Platform flat non-slip mat 230 x 230mm fits CPS-20 | BIO-PP-4 |
| Adjustable bar additional for PUP-12 platform | HB-200 |
