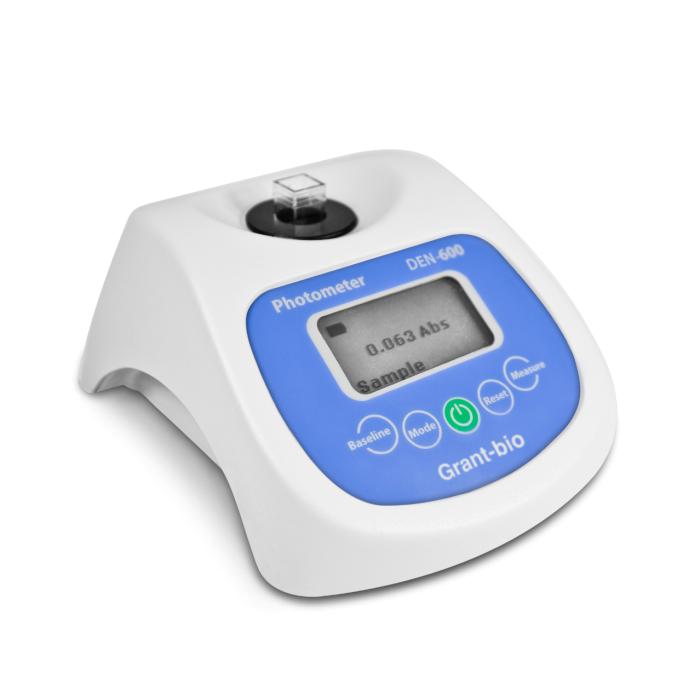

Grant-bio DEN-600
Grant-bio DEN-600 is a combined densitometer and photometer. It is equipped with a 600nm-wavelength optical system. The sample compartment is designed to allow the use of standard 10mm-lightpath cuvettes, conical vials, round-bottomed tubes and 15ml conical tubes. Thus, it is an economical alternative to a spectrophotometer offering:
- OD600 for the estimation of number of cells
- McFarland (McF) method for measurement of turbidity
- Bradford protein assay method for measurement of protein concentration
Via USB connectivity, the software facilitates data transfer, data processing and calculation, software calibration for Bradford protein assay method or even customized calibration.
Powered by rechargeable battery, DEN-600 can be conveniently used in a biosafety cabinet or anaerobic chamber without having to fuss over electrical availability.
| DEN-600 | |
| Light source | LED, self-calibrating |
| Photodetector | Silicone photodiode |
| Measurement wavelength (λ) | 600 nm ±10 nm |
| Vessel type | 10mm-lightpath cuvette / 16mm-dia round-bottom tube / 15ml conical tubes |
| Measurement modes | Absorbance (Abs), McFarland (McF) |
| Measurement range | 0 – 3.0 Abs | 0 - 16.00 McF |
| Resolution | 0.001 Abs | 0.01 McF |
| Accuracy | ±0.006 @ 1 Abs | ±0.1 @ 0-8 McF |
| Repeatability | ±0.003 @ 1 Abs | ±0.05 @ 0-8 McF |
| Battery type | Li-Ion |
| PC system requirements: | Intel/AMD Processor, 1 GB RAM, Windows Vista/7/8/10, USB |
| Dimensions (W×D×H) | 120 × 145 × 65 mm |
| Weight | 0.5 kg |
| External power supply | Input AC 100–240 V 50/60 Hz, Output DC 12 V |
Suitable for customers in the life-science sector for:
- Determination of cell concentration
- Cell growth studies
- Susceptibility test of micro-organisms to antibiotics
- Bradford protein assay
- Optical density measurement at fixed wavelength
Ordering information
| Description | Part no. |
| Densitometer, portable battery/mains, cell photometer turbidity 0 - 16 McF & 0.3 Abs,wavelength 600nm, for10mm path cuvettes, round bottom, & falcon tubes | DEN-600 |
| Adaptor replacement for 16 mm outer diameter tubes fits DEN-1 and DEN-1B | D16 |
| Standards reference, set of 5 McFarland for user calibration of 16mm tubes (requires also D16) | DEN MCF STDS |
