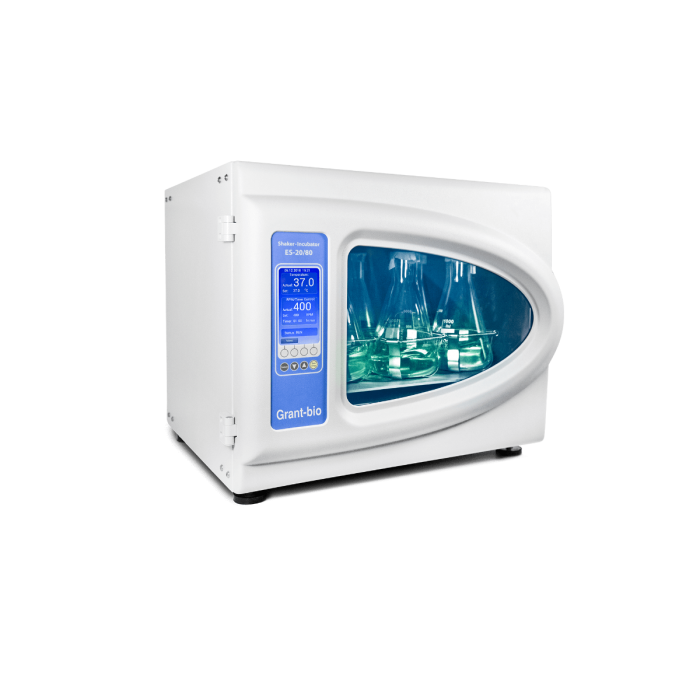

Grant-bio ES-20/80
Grant-bio ES-20/80 Shaker-incubator is designed for reliable mixing of samples in a temperature-controlled environment.
Coupled with a heat-resistant brushless fan, the PID control offers good temperature accuracy and uniformity. Using a stainless steel inner chamber with quality thermal insulation materials, the shaker-incubator has good energy efficiency.
Equipped with a newly-developed triple eccentric mechanism for platform motion, this shaker-incubator has superb balancing characteristics. This allows user to stack up to 3 shakers even during vigorous mixing, freeing up more lab space.
The new user-friendly interface provides a clear and intuitive control of parameters with data logging, storage and display over time. Additionally, safety features such as balance sensor and automatic thermostat failure detection are included.
| ES-20/80 | |
| Temperature setting range | +25°C... +80°C |
| Temperature control range | 5°C above ambient... +80°C |
| Speed control range | 50–400 rpm (increment 10 rpm) |
| Temperature stability | ±0.1°C |
| Temperature setting resolution | 0.1°C |
| Temperature accuracy at +37°C | ±0.1°C |
| Temperature uniformity at +37°C | ±0.3°C |
| Orbit | 20 mm |
| Display | TFT, 5 inches |
| Digital time setting | 1 min–96 hrs / non–stop (1 min increment) |
| Timer sound signal | + |
| Maximum load | 10.6 kg |
| PC system requirements | Intel/AMD Processor, 1 GB RAM, Windows Vista/7/8/8.1/10, USB, Bluetooth |
| Dimensions of the inner chamber | 460 × 400 × 310 mm |
| Overall dimensions (W×D×H) | 620 × 530 × 510 mm |
| Weight | 48 kg |
| Power consumption (230V / 120 V) | 500 W (2.2 A) |
| Nominal operating voltage | 230 V, 50/60 Hz |
Suitable for customers in the life-science sector for:
- microbial and cell culture cultivation
- protein expression
- solubility studies
Ordering information
| Description | Part No. |
| Orbital shaker-incubator compact Bluetooth, 50 - 400 rpm, +25 -+80°C. Order platform separately | ES-20/80 UK |
| Stacking kit 2x ES-20/80 for use with the ES-20/80 | ESSK2 |
| Stacking kit 3x ES-20/80 for use with the ES-20/80 | ESSK3 |
| Bluetooth adapter | BLUEAD |
| Platform for 100ml flasks (30x 100-150ml flasks. ES-20/80) | HSP-30/100 |
| Platform for 1L flasks (6x 1000ml flasks. ES-20/80) | HSP-6/1000 |
| Platform for 500ml flasks (9x 500ml flasks. ES-20/80) | HSP-9/500 |
| Platform for 250ml flasks (16x 250-300ml flasks. ES-20/80) | HSP-16/250 |
