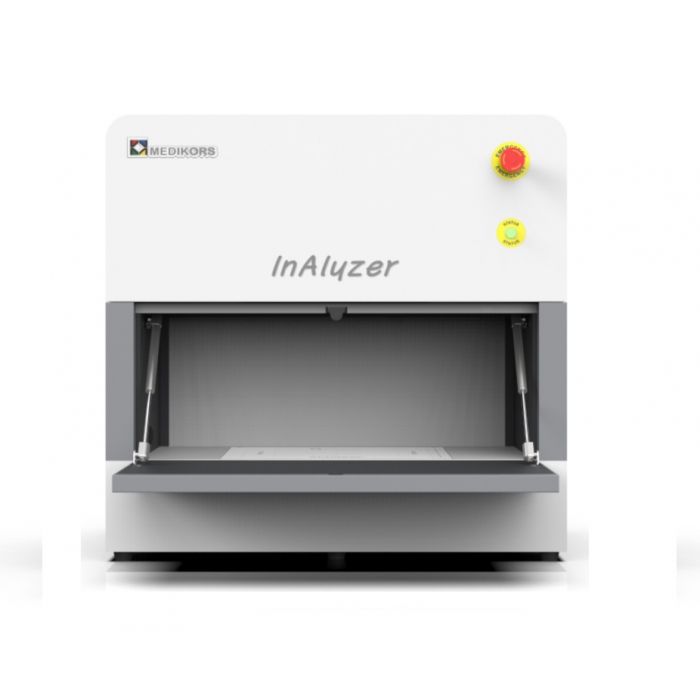

Medikors InAlyzer
Founded in 2013, MEDIKORS Inc. is passionate in the field of diagnostic imaging technology.
InAlyzer is the world’s first benchtop 108-µm body composition analyzer for lab animals in 2014. Based on dual-energy X-ray Absorptiometry (DXA), it uses two X-rays of different types of energy to examine a target of interest. It allows high-resolution bone mineral density and body composition analysis for research.
Eliminating the need for destructive chemistry analysis in bone and tissue composition measurements, a researcher is able to make multiple measurements throughout the entire the life of a lab animal.
- Completes the scanning with accurate results within 1 minute
- Fan-beam device using super flattening technique to conveniently scan and measure several animals at the same time
- Has inner camera to observe animals during scan
- Use a 54μm linear detector for super-resolution images at 4.9lp/mm
- Offers up to 210mm X 315mm scanning area to work with larger experimental animals such as rabbit and guinea pig
- Has access point for easy application of anesthesia
- Effective lead shield inside analyzer to effectively block off the radiation from user
- Up to 30 ROI (Region of Interest) and 10 XROI (except ROI) can be selected
| Model | InAlyzer S | InAlyzer M |
| Technology | Dual-energy X-ray Absorptiometry (DXA) | Dual-energy X-ray Absorptiometry (DXA) |
| Radiation beam | Fan beam | Fan beam |
| Imaging Area | 14 x 21 cm | 21 x 31.5cm |
| Pixel pitch (Detector) | 54µm (108µm in analysis) | 54µm (108µm in analysis) |
| Preicision | Error < 1% CV | Error < 1% CV |
| Camera | 8x zoom function | 8x zoom function |
| Scan mode | Quick / Optimum / Accurate | Quick / Optimum / Accurate |
| Scan time(incl analysis) | 1 min (Quick Mode) | 1 min (Quick Mode) |
| Spatial resolution | 4.9LP/ mm | 4.9LP/ mm |
| Access point | 1 (for introduction of gaseous anesthesia) | 1 (for introduction of gaseous anesthesia) |
| No. of region of Interest (ROI) | 30 ROI, 10XROI 30 CROI, 10CXROI |
30 ROI, 10XROI 30 CROI, 10CXROI |
| Data export | Exports data to Excel File | Exports data to Excel File |
| File format of image | TIFF file | TIFF file |
| Chamber dimensions (WxDxH) | 63.6 x 28.8 x 25.5cm | 63.6 x 28.8 x 25.5cm |
| External dimensions (WxDxH) | 74.0 x 43.0 x 71.7cm | 74.0 x 43.0 x 71.7cm |
| Electrical requirements | 90 – 264 VAC, 50/ 60Hz, 100W | 90 – 264 VAC, 50/ 60Hz, 100W |
| Weight | 123kg | 123kg |
Widely adopted in the research of:
- Metabolic bone diseases (Osteoporosis)
- Metabolic disorders (Diabetes, obesity)
- Arthritis
- Musculoskeletal diseases
- Drug safety and toxicology
