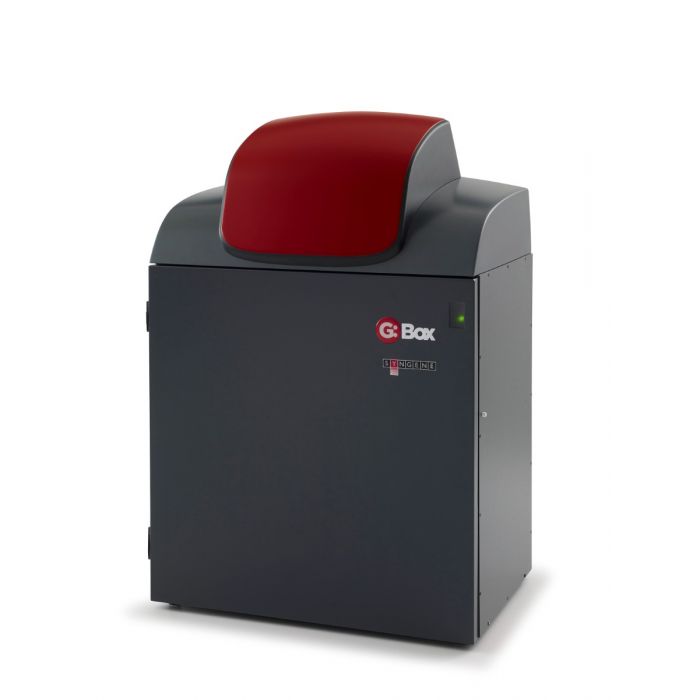

Syngene G:BOX F3 Gel imaging System
Syngene is founded in 1985 with a single focus to develop gel documentation and fluorescence/chemiluminescence imaging systems.
G:BOX F3 is an entry level imaging system for fluorescence and visible applications. It features a 5m-pixel camera, a motor-driven zoom lens, a motor-driven filter wheel and feedback lens. These features ensures optimization of image capture using user protocols.
Being modular, user can select the various white light, UV and blue light options customize the system. Depending on the dyes or stains used, the imaging system automatically selects the right lighting and filters to detect close bands on both small and large gels.
The system is controlled by GeneSys application-driven image capture software and it comes complete with unlimited copies of GeneTools analysis software.
- Image gels up to 30cm x 24cm in the darkroom
- 5mp camera resolves close bands and detects nanogram amounts
- Motor-driven zoom lens and filter wheel for easy manipulation
- Lens feedback to optimize image capture based on user protocols
- White light, UV and blue lighting options are all available for selection, meeting the needs of every application
- CFR-21 Part 11-compliant GeneSys image capture software offers extensive database of dyes and imaging protocols, offering automatic selection of optimal lighting and filters for perfect imaging
- Unlimited copies of the GeneTools analysis software provided, allowing every individual to performa data analysis at their own computer
- 3-year warranty against manufacturing defects
| G:BOX F3 | |
| Image resolution (pixels m) | 5 |
| Effective resolution (pixels m) | 15.1 |
| A/D | 12/16 bit |
| Greyscales | 65536 |
| Quantum efficiency @ 425nm | 52% |
| Cooling | None |
| Lens (motor driven) | Zoom f1.2. with lens feedback |
| Filter wheel (7 position motor driven) | Yes |
| UV filter | Yes |
| Use with external PC | Yes |
| Darkroom | |
| Standard | Yes |
| Illumination | |
| Epi LED white lights | Yes |
| Epi UV 302nm | Optional |
| Visible light converter 33 x 31cm | Optional |
| White light pad for visible stains (20 x 14cm) | Optional |
| UltraBright LED blue light transilluminator 20 x 16cm | Optional |
| UV transilluminators | Optional |
| Dimensions | |
| Max image area (cm) | 32.5 x 24.1 |
| Min image area (cm) | 5.6 x 4.2 |
| W x H x D (cm) | 57 x 84 x 45 |
| Weight (kg) | 37 |
| Voltage | 115v/240v |
Suitable for customers in the lifesciences sector for imaging of:
- Fluorescence gel
- Gels stained with visible dyes/ stains
| Transilluminator | |
| Choice of wavelength | Short – 254nm Medium – 302nm Long – 365nm |
| choice of Imaging area | 20 x 20cm 25 x 30cm |
| Electrical requirement | 230V 50Hz or 230V 60Hz |
| ultrabright-led Transilluminator | |
| wavelength | 470nm Blue Light |
| choice of Imaging area | 20 x 16cm |
| UV-Blue Light Converter Screen | |
| Materal | Scratch-resistant plastic |
| choice of Imaging area | 21 x 26cm 25 x 30cm |
| Visible Light Converter Screen | |
| choice of Imaging area | 30.5 x 33cm 23.5 x 30cm |
| epi UV module | |
| Choice of wavelength | 254nm, 365nm or 302nm |
| no. of module | 1 or 2 modules per darkroom |
| Filter | |
| diameter of filter | 72mm |
| choice of wavelength | On request |
